Diving Deeper into Signal Processing

Importance of Signals

Signals are an important part of 5G network foundational components, with the reliable transmission of data happening through radio signal propagation. Signals in their raw form propagate through the air, bouncing off of stationary/moving objects and other signals produced from random sources before arriving at a listening receiver. However, there are many factors like noise, attenuation, distortion, fading, and interference that provide obstacle to the reliable transmission of data. .. figure:: /images/signalpropagation.PNG

Why Signal Processing is needed for Data Analyzation

Signals, in their essential form, are functions that are represented over time. These signals are most commonly represented as sine waves, which can be plotted in either the time or frequency domain. In SDR and digital signal processing, signals displayed in the time domain are represented in their natural form and samples of signals will be taken directly in the time domain. The frequency domain shows how much of a signal rests in certain frequencies and is used to show different features of a signal that cannot be seen with the time domain. In this module, you will learn about how signals can be converted from time domain to frequency domain and provide a more distinct form for processing and analysis.

Fourier Transforms

The conversion from time to frequency domain and back is represented mathematically through the Fourier Transform. In this module, four members of the fourier transform family are defined:

• Fourier Transform: This transform is used to convert time and frequency domains both ways. Properties of this transform include addition, scaling, and frequency shifts.

• Fourier Series: Signals can be represented by sine waves summed together and a signal broken down into its composite sine waves can be called a Fourier series.

• Discrete Fourier Transform (DFT): Time domain and frequency domain signals are viewed as periodic, meaning that signals continuously repeat.

• Fast Fourier Transform (FFT): The FFT is a faster implementation of the DFT and produces similar results as the other approaches but with significantly less computation time. An FFT has the same effect as an analog spectrum analyzer by narrowing the bandwidth and measuring amplitude and noise components of any digitized signal.

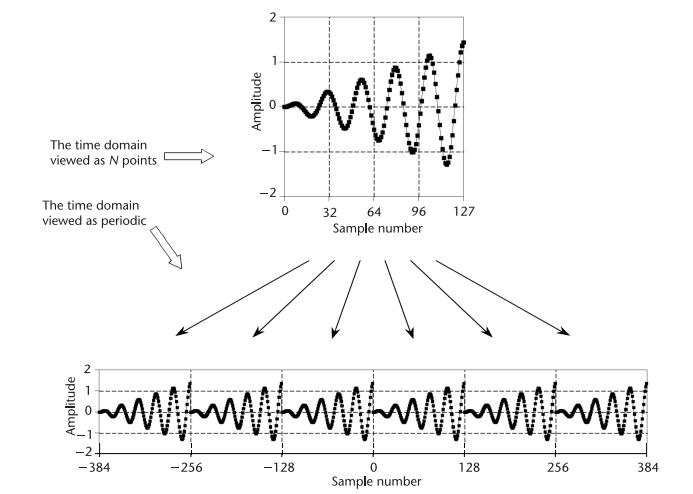

The uses of DFT and FFT are most prominent in the capture and output of signal waveforms. The above figure depicts the difference between DFT and other Fourier transform time signal representations. Samples can be taken with N defined points, typically done in fourier, fast fourier, and series or on a continous interval. Periodic sampling is a result of repeating the interval of N points continuously as shown in the figure. DFTs are the only transforms to display periodic signals in both time and frequency domains. Most signals used in signal processing applications, however, are not periodic. With the above figure showing the difference between DFT and alternative transforms, the table below outlines the common properties across the family of transforms and how they are used in signal processing.

Fourier Properties

Property	Description
Linearity	Signals added to each other in time will similarly be represented in the frequency domain as domain signals added together. Scaling time domain signals will also scale frequency domain signals by the same amount.
Frequency Shift	Multiplying a signal by additional sine waves will shift signals up or down a certain frequency amount.
Scaling in Time	Shrinking or expanding the signal on the x-axis (time) causes a directly inverse relationship with frequency domain shows why signals with higher data rates take up more bandwidth.
Convolution in Time	Convolving input and impulse response signals in a linear system will produce a third output signal.
Convolution in Frequency	Reverse process as convolution in time.
Symmetry	The transform values of positive and negative frequencies for a given signal are complex conjugates of each other.
Inversion formula	Sine waves can be reconstructed with frequency and phase information.
Derivative	Performing this function on a signal in time will produce a derivative fourier transform signal.
Integration	Similar to derivative, an integral fourier transform signal will result.

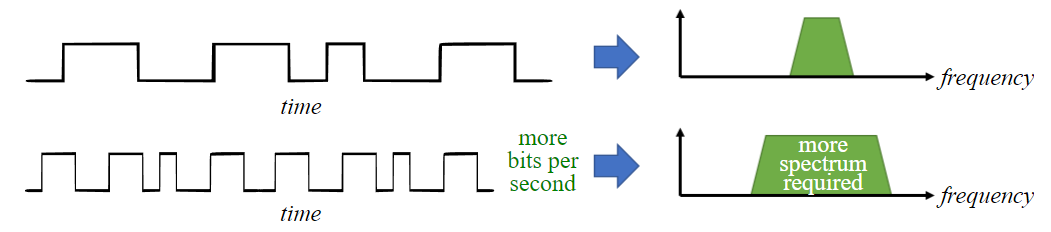

Here is an example of the time scaling property mentioned in the above table. As seen in the image, the signal is scaled in the time domain to produce a higher data rate. This is displayed in the lower response in the image and as the data rate is increased, the conversion to frequency domain shows a response that ultimately requires a higher bandwidth. The diagram emphasizes the frequency’s inverse response to time domain and explains why there are tradeoffs to having higher data rates.

Fourier Transforms are essential to providing a mathematical model for shifts from the time and frequency domains. These models provide the proper structure for displaying signals and introduce an important component between signal capture and signal filtering, sampling.
